Zebronics ZEB-H61 Motherboard – LGA 1155
₹3,749.00 Inc. GST
– Intel H61 chipset, LGA 1155
– Compatible with 2nd/3rd Gen Intel CPUs
– DDR3 RAM slots, VGA output
– Entry-level motherboard

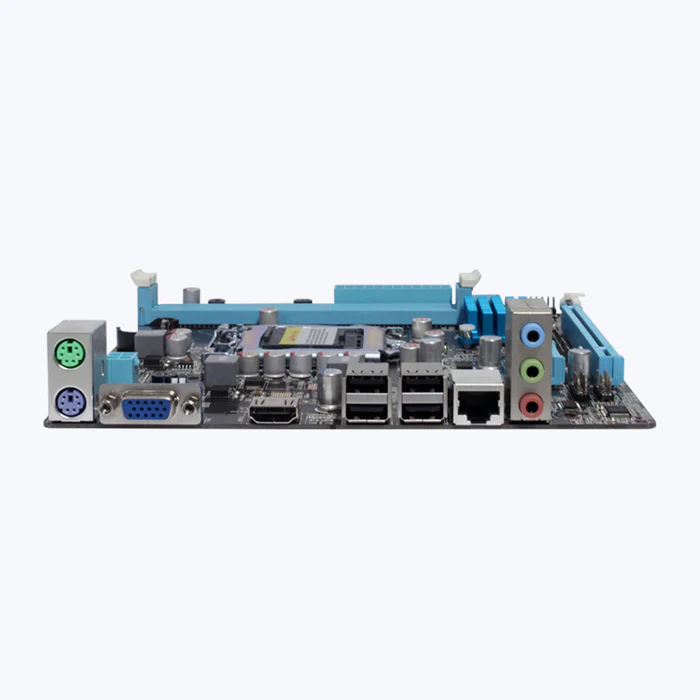

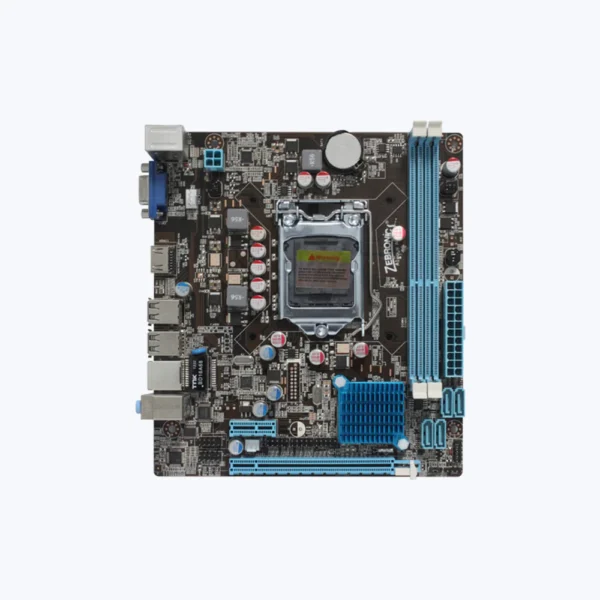

The ZEB-H61 motherboard is designed for basic computing needs with LGA 1155 socket, DDR3 RAM slots, and VGA output. A dependable option for budget PC setups.
SPECIFICATION
| Processor support | Supports Intel® i7/i5/i3/Pentium/Celeron processors in LGA1155 | |
| Chipset | Intel® H61Chipset | |
| Memory support | 2 DDR3 dual-channel slots, Support DDR3 1066/1333/1600MHz memory | |
| LAN | Supports Realtek 8106E 10/100 Mbps | |
| Audio | Realtek 662 3xAudio Jacks for 6 channel High definition audio | |
| Back panel | 1 PS/2 mouse/keyboard port, 1 VGA port, 1HDMI port, 4 USB 2.0 ports, 1 LAN port, 3 audio jacks | |
| On-Board connectors | 1 x Front panel connector, 1 x speaker connector, 1 x Front panel audio connector (2 x 5pin), 4 x USB 2.0 ports, 4 x SATA 3Gb/s (SATAII) ports, 1 x 4pin CPU fan connector, 1 x SYS fan connector, 1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector, 1 x 3pin clear CMOS header |
|
| Slots | 1 PCI Express x16 slot, 1 PCI Express x1 slot |
Additional information
| Model | H61 |
|---|---|
| CPU Socket | LGA 1155 |
| Chipset | Intel H61 |
| Memory Type | DDR3 |
| Form Factor | Micro-ATX |
